Home » Subaru WRX/STI » Fuel Components » Fuel Injectors

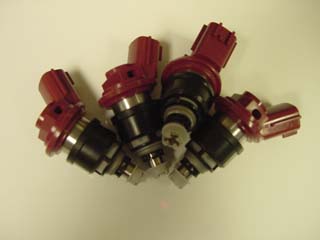

MZM 720cc Injectors - '04 and up Subaru STI
720cc Injectors for the 2004-2006 Subaru USDM STI (side feed/DBW) 2.5L/Forester 2.5L Turbo XT, Using the supplied injector clips the Injectors drop directly into the stock fuel rails. These are not modified stock units that alter the spray pattern which sprays fuel directly on the valve diverter, but instead are specifically designed for racing application by JECS of Japan performance division utilizing a diffuser not only to keep the spray pattern optimized but is also used to meter fuel for a system balance as do the stock units. The units have an excellent spray pattern, & as tested by RC 8 different units flow an approximate rate of 720cc with a good system balance, this most definitely shows consistency. The clips listed are the actual parts needed to configure a connector for that specific injector, the plastic connector, two pins, & two grommets.

View Flow Chart

*The use of MZM720cc injectors requires an Engine Management System for proper operation of your engine*

*MZM strongly recommends utilizing new Subaru factory injector o-rings*

*Remove pins from stock injector clips and insert into the new injector clips.



Price: $595.00
